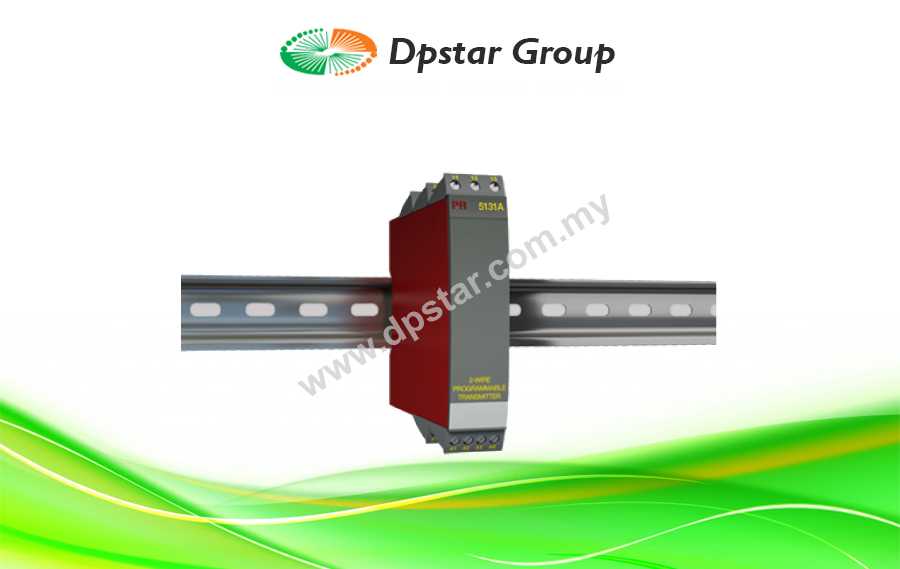

2-Wire Programmable Transmitter – PR Electronics 5131A

Features

  • Input for RTD, TC, mV, linear resistance, mA, and V
  • 3.75 kVAC galvanic isolation
  • 4…20 mA loop output
  • 1- or 2-channel version
  • DIN rail mounting
Enquiry

Advanced features

  • The 5131A transmitter can be configured with the software program PReset using a standard PC and the Loop Link communications unit.

Application

  • Independent channel jumper selectable inputs for current/voltage or temperature.
  • Current input programmable in range 0…100 mA and voltage inputs in range 0…250 VDC.
  • Linearized, electronic temperature measurement with RTD or TC sensor.
  • Conversion of linear resistance variation to a standard analog current / voltage signal, for example from solenoids and butterfly valves or linear movements with attached potentiometer.
  • 4- or 3-wire connection automatic cable compensation or 2-wire connection with programmable cable compensation.
  • Configurable sensor error detection including NAMUR NE43.

Technical characteristics

  • The 2-channel version has full galvanic isolation between the channels.
  • Separation of circuits in PELV/SELV installations.

Specification

ENVIRONMENTAL CONDITIONS
Operating temperature -20°C to +60°C
Calibration temperature 20…28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
MECHANICAL SPECIFICATIONS
Dimensions (HxWxD) 109 x 23.5 x 130 mm
Weight approx. 195 g
DIN rail type DIN 46277
Wire size 1 x 2.5 mm2 stranded wire
Screw terminal torque 0.5 Nm
COMMON SPECIFICATIONS
Supply
Supply voltage 7.5…35 VDC
Fuse 50 mA SB / 250 VAC
Isolation voltage
Isolation voltage, test / working 3.75 kVAC / 250 VAC
PELV/SELV IEC 61140
Response time
Temperature input, programmable (0…90%, 100…10%) 400 ms…60 s
mA / V input (programmable) 250 ms…60 s
Programming Loop Link
Signal / noise ratio Min. 60 dB (0…100 kHz)
Signal dynamics, input 22 bit
Signal dynamics, output 16 bit
Updating time 115 ms (temperature input) 75 ms (mA / V / mV input)
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span
Effect of supply voltage change < 0.005% of span / VDC
INPUT SPECIFICATIONS
Common input specifications
Max. offset 50% of selected max. value
RTD input
RTD type Pt100, Ni100, lin. R
Cable resistance per wire 10 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes
TC input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) < ±1.0°C
Sensor error current Nom. 30 μA
Sensor error detection Yes
Current input
Measurement range 0…100 mA
Min. measurement range (span) 4 mA
Input resistance: Supplied unit Nom. 10 Ω + PTC 10 Ω
Input resistance: Non-supplied unit RSHUNT = ∞, VDROP < 6 V
mV input
Measurement range -150…+150 mV
Voltage input
Measurement range 0…250 VDC
Min. measurement range (span) 5 mV
Input resistance Nom. 10 MΩ (≤ 2.5 VDC) Nom. 5 MΩ (> 2.5 VDC)
OUTPUT SPECIFICATIONS
Current output
Signal range 4…20 mA
Min. signal range 10 mA
Load (@ current output) ≤ (Vsupply -7.5)/0.023 [Ω]
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA
Sensor error indication Programmable 3.5…23 mA
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA
of span #NAME?
OBSERVED AUTHORITY REQUIREMENTS
EMC 2014/30/EU
LVD 2014/35/EU
APPROVALS
ATEX DEMKO 99ATEX124572, II (1) GD [EEx ia] IIC
