Thermocouple Extension Cables – Ninomiya PVC Cable 2-Pairs (Round Type)

Features

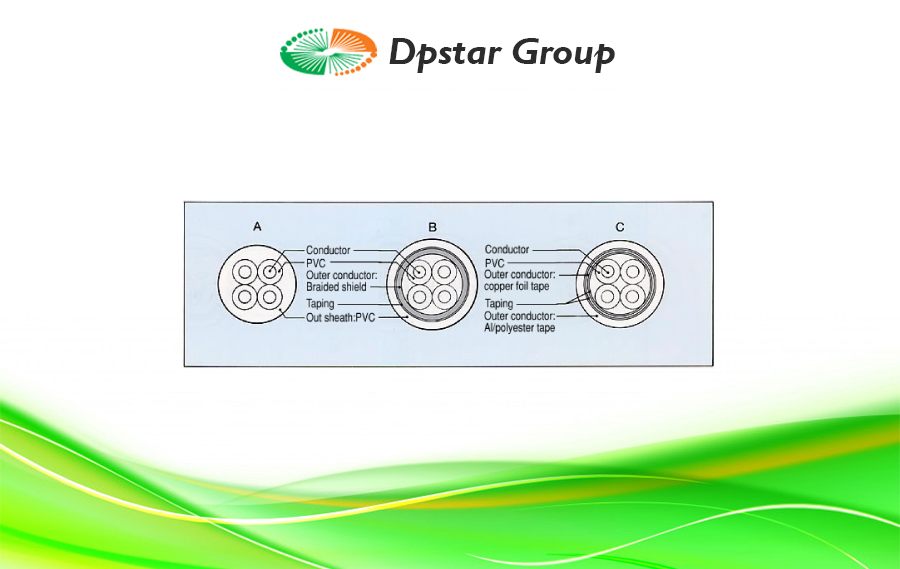

2 elemental compensating wires are insulated with PVC separately, stranded together with inclusion (A, B and C), shielded with tin-coated annealed copper wires (B), aluminum-Mylar drain wires (C) or copper tape (D), and coated with PVC at the outermost.

Enquiry
Category:
Love0

2 elemental compensating wires are insulated with PVC separately, stranded together with inclusion (A, B and C), shielded with tin-coated annealed copper wires (B), aluminum-Mylar drain wires (C) or copper tape (D), and coated with PVC at the outermost.

Specification

Parts No. Construction No. of pairs Conductor Insulation OD of pair mm Shield
thickness
mm		 Sheath
thickness
mm		 Finished
OD
mm
Standing
No./mm		 OD
mm		 Thickness
mm		 OD
mm
12/0.18x2P □X-G=V■Ｔ A 2 12/0.18 0.7 0.4 1.5 3.6 － 0.7 5
12/0.18x2P □X-G-IS=V■Ｔ B 2 12/0.18 0.7 0.4 1.5 3.6 0.3 0.7 5.7
7/0.3x2P □X-G=V■Ｔ A 2 7/0.3 0.9 0.5 1.9 4.6 － 0.8 6.2
7/0.3x2P □X-G-IS=V■Ｔ B 2 7/0.3 0.9 0.5 1.9 4.6 0.3 0.8 6.9
20/0.18x2P □X-G=V■Ｔ A 2 20/0.18 1 0.5 2 4.8 － 0.8 6.4
20/0.18x2P □X-G-IS=V■Ｔ B 2 20/0.18 1 0.5 2 4.8 0.3 0.8 7.1
30/0.18x2P □X-G=V■Ｔ A 2 30/0.18 1.2 0.5 2.2 5.3 － 0.8 6.9
30/0.18x2P □X-G-IS=V■Ｔ B 2 30/0.18 1.2 0.5 2.2 5.3 0.3 0.8 7.6
7/0.45x2P □X-G=V■Ｔ A 2 7/0.45 1.35 0.5 2.35 5.7 － 1 7.7
7/0.45x2P □X-G-IS=V■Ｔ B 2 7/0.45 1.35 0.5 2.35 5.7 0.3 1 8.4
7/0.45x2P □X-G-TIS=V■Ｔ C 2 7/0.45 1.35 0.5 2.35 5.7 0.1 1 8.7
4/0.65x2P □X-G=V■Ｔ A 2 4/0.65 1.57 0.6 2.77 6.7 － 1 8.7
4/0.65x2P □X-G-IS=V■Ｔ B 2 4/0.65 1.57 0.6 2.77 6.7 0.3 1 9.4
4/0.65x2P □X-G-TIS=V■Ｔ C 2 4/0.65 1.57 0.6 2.77 6.7 0.1 1 9.7
7/0.65x2P □X-G=V■Ｔ A 2 7/0.65 1.95 0.6 3.15 7.6 － 1 9.6
7/0.65x2P □X-G-IS=V■Ｔ B 2 7/0.65 1.95 0.6 3.15 7.6 0.3 1 10.3
7/0.65x2P □X-G-TIS=V■Ｔ C 2 7/0.65 1.95 0.6 3.15 7.6 0.1 1 10.6

Please fill in □ with a type of a compensation cable (first two alphabets of the symbol) to order.
Please fill in ■ with symbols of an insulator and a PVC:Regular PVC = V, Flame retardant heat-resistant PVC = V1, Soft PVC = V3
We also manufacture outer shields for tin-coated annealed copper wires (OS) and for　stainless wires (SOS). Please contact us with any requests.
Ninomiya Standard 2-pair compensating cables are basically stranded totally. If you need twin stranded cables, please notice it when you order.
