Thermocouple Extension Cables – Ninomiya PVC Cable 1-Pair (Flat Type)

Features

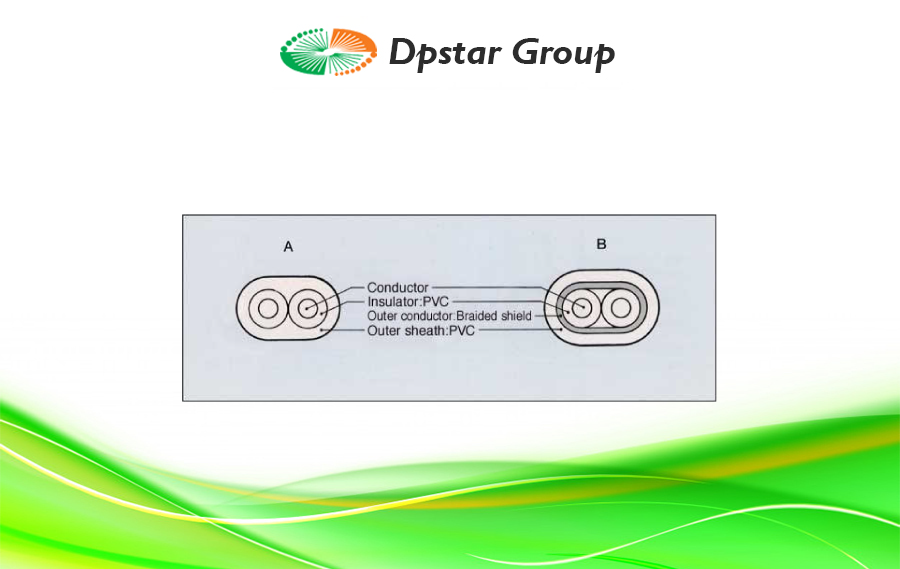

Two elemental compensating wires are insulated with PVC separately, bound together in parallel, shielded with tin-coated annealed copper wires (B), and coated with PVC at the outermost.

Enquiry
Category:
Love0

Two elemental compensating wires are insulated with PVC separately, bound together in parallel, shielded with tin-coated annealed copper wires (B), and coated with PVC at the outermost.

Specification

Parts No. Construction No. of pairs Conductor Insulation Parts
OD
mm		 Shield
thickness
mm		 Sheath
thickness
mm		 Finished
OD
mm
Standing
No./mm		 OD
mm		 Thickness
mm		 OD
mm
Normal type
12/0.18x1P □X-G=■■■ A 1 12/0.18 0.7 0.35 1.4 1.4×2.8 － 0.4 2.2×3.6
12/0.18x1P □X-G-IS=■■■ B 1 12/0.18 0.7 0.35 1.4 1.4×2.8 0.3 0.6 3.2×4.6
7/0.3x1P □X-G=■■■ A 1 7/0.3 0.9 0.5 1.9 1.9×3.8 － 0.65 3.2×5.1
7/0.3x1P □X-G-IS=■■■ B 1 7/0.3 0.9 0.5 1.9 1.9×3.8 0.3 0.65 3.8x.5.7
20/0.18x1P □X-G=■■■ A 1 20/0.18 1 0.5 2 2.0×4.0 － 0.65 3.3×5.3
20/0.18x1P □X-G-IS=■■■ B 1 20/0.18 1 0.5 2 2.0×4.0 0.3 0.65 3.9×5.9
30/0.18x1P □X-G=■■■ A 1 30/0.18 1.2 0.5 2.2 2.2×4.4 － 0.65 3.5×5.7
30/0.18x1P □X-G-IS=■■■ B 1 30/0.18 1.2 0.5 2.2 2.2×4.4 0.3 0.65 4.1×6.3
7/0.45x1P □X-G=■■■ A 1 7/0.45 1.35 0.5 2.35 2.35×4.7 － 0.7 3.8×6.1
7/0.45x1P □X-G-IS=■■■ B 1 7/0.45 1.35 0.5 2.35 2.35×4.7 0.3 0.7 4.4×6.7
4/0.65x1P □X-G=■■■ A 1 4/0.65 1.57 0.6 2.77 2.77×5.54 － 0.8 4.4×7.1
4/0.65x1P □X-G-IS=■■■ B 1 4/0.65 1.57 0.6 2.77 2.77×5.54 0.3 0.8 5.0×7.7
7/0.65x1P □X-G=■■■ A 1 7/0.65 1.95 0.6 3.15 3.15×6.3 － 0.8 4.8×7.9
7/0.65x1P □X-G-IS=■■■ B 1 7/0.65 1.95 0.6 3.15 3.15×6.3 0.3 0.8 5.4×8.5
Small size type
7/0.3x1P □X-Gm=■■■ A 1 7/0.3 0.9 0.35 1.6 1.6×3.2 － 0.5 2.6×4.2
7/0.3x1P □X-Gm-IS=■■■ B 1 7/0.3 0.9 0.35 1.6 1.6×3.2 0.3 0.55 3.3×4.9
30/0.18x1P □X-Gm=■■■ A 1 30/0.18 1.2 0.4 2 2.0×4.0 － 0.6 3.2×5.2
30/0.18x1P □X-Gm-IS=■■■ B 1 30/0.18 1.2 0.4 2 2.0×4.0 0.3 0.6 3.8×5.8

Please fill in □ with a type of a compensation cable (first two alphabets of the symbol) to order.
Please fill in ■ with a type of an insulation PVC (symbol):Regular PVC = V, Flame retardant heat-resistant PVC = VV1F, Soft PVC = VV3F
We also manufacture outer shields for tin-coated annealed copper wires (OS) and for stainless wires (SOS). Please contact us with any requests.
