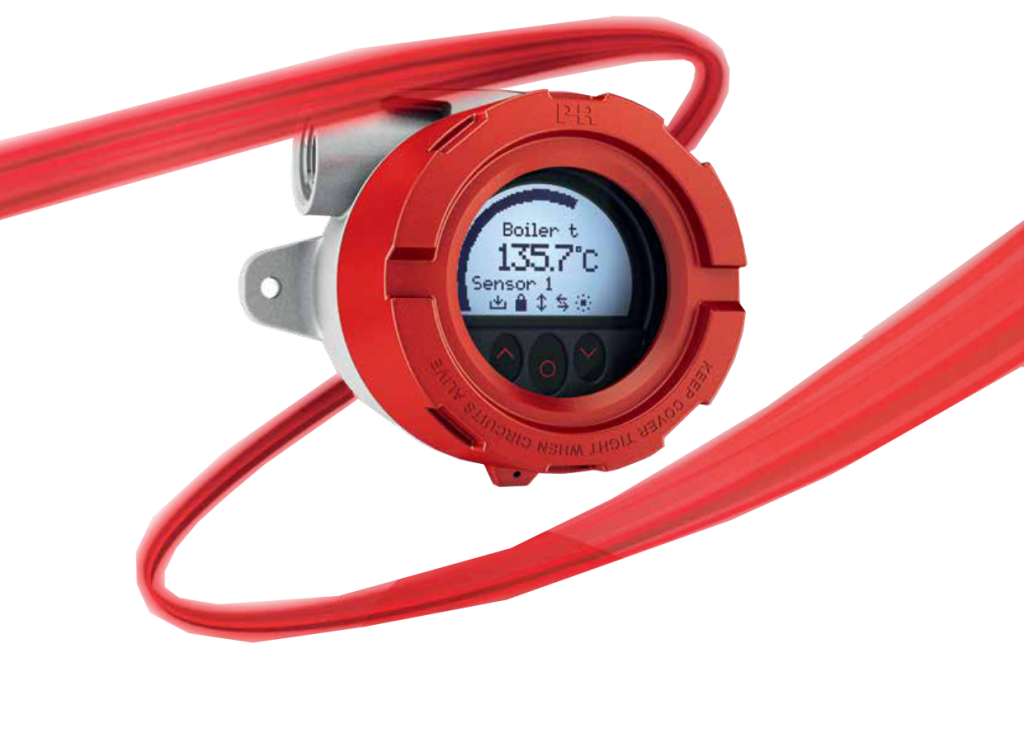

Field Mounted HART Temperature Transmitter With Display & Optical Buttons

Now you can benefit from easy programming and quick, at-a-glance review and diagnostics of your process values with the 7501 Field mounted HART temperature transmitter. Using unique technology, you can configure the transmitter from the front of the housing in any environment by simply touching the optical buttons – even when wearing gloves. You can also perform advanced HART programming from the front, and as a result, significantly reduce the need for handheld communicators (HHC).

Once installed, you never have to open the housing again. The easy-to-read 60 mm diameter display provides a clear indication of your process magnitude, supported by a radial bar graph. And the enclosure is Ex d explosion proof / flame proof to maintain safety and integrity at all times. The temperature transmitter delivers exceptionally high measurement accuracy and HART 7 functionality with HART 5 compatibility.

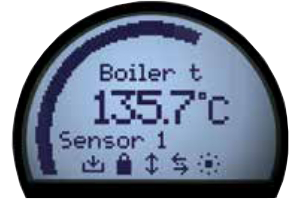

Through the glass, you can easily monitor the process value, and the radial bar graph indicates the process magnitude at a glance. A custom device tag, process value tag, and unit fields make it easy to identify the displayed process point.

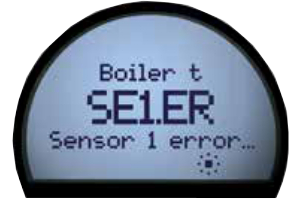

If a sensor or device error occurs, a red or white flashing backlight, specific error text, and scrolling error messages help you provide quick troubleshooting.

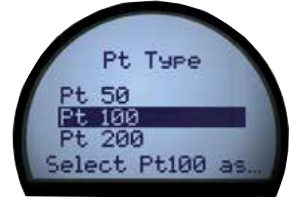

PR’s well-known user-friendly menu structure provides a guided configuration path that makes setting
up the transmitter fast and intuitive.
